Quick Details

  • Type: Other
  • Electric Current Type: AC
  • Blade Material: galvanized steel
  • Mounting: Duct Fan
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CHOSEN
  • Model Number: CH-C100~C400
  • Power: 68~250w
  • Voltage: 110~120V/220~240V
  • Air Volume: 275~2800m3/h
  • Speed: 2500~2700RPM
  • Certification: CCC, CE, ROHS, UL
  • After-sales Service Provided: No overseas service provided
  • Color: Grey/Orange/Red/Green and any other color
  • Impeller: Backward-curved centrifugal impeller
  • Casing: Stamped of forming with precise injection molding
  • Motor: Single uotlet rotor
  • Motor Class: Insulation class:F / Motor Protection:IP 44
  • Current: 0.8A
  • Noise: 60~75dB(A)
  • Working Temperature: 20~55℃

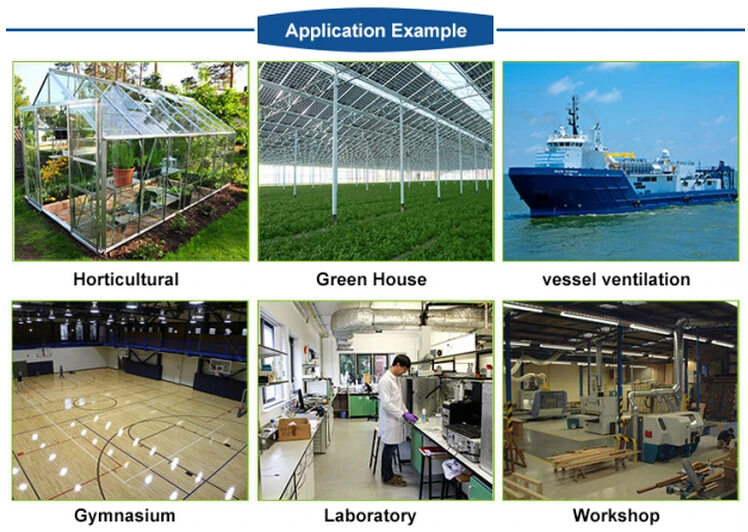

  • Appliance: Hotel,restaurant,auditorium,meeting room,supermarket,airport

Packaging & Delivery

Packaging Details: Cartons(1pc/ctn) in seaworthy cartons or customized
Delivery Detail: 20 days

Foshan Factory direct supply 2'' to 14'' inline duct fan blower

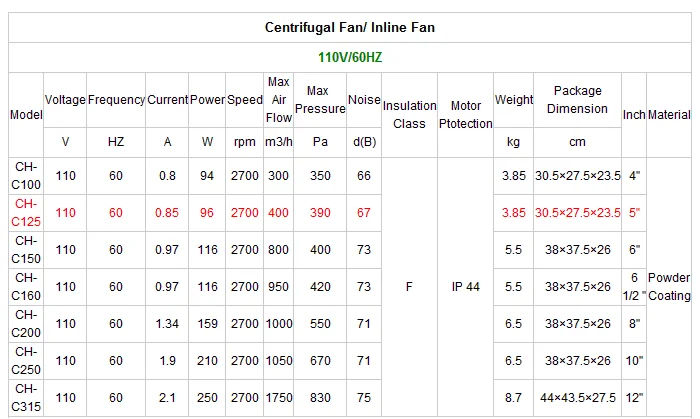

Centrifugal Fan/ Inline Fan
110V/60HZ
ModelVoltageFrequencyCurrentPowerSpeedMax Air FlowMax   PressureNoiseInsulation ClassMotor PtotectionWeightPackage DimensionInchMaterial
VHZAWrpmm3/hPad(B)kgcm
CH-C100110600.894270029035065FIP 443.8530.5×27.5×23.54"Powder Coating
CH-C125110600.85962700400390663.8530.5×27.5×23.55"
CH-C150110600.971162700800400725.538×37.5×266"
CH-C160110600.971162700800420725.538×37.5×266 1/2 "
CH-C200110601.3415927001000550706.538×37.5×268"
CH-C250110601.921027001040670706.538×37.5×2610"
CH-C300110602.125027001750830758.744×43.5×27.512"

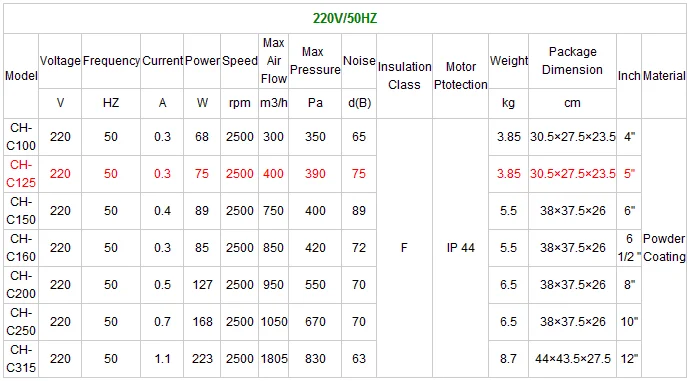

220V/50HZ
ModelVoltageFrequencyCurrentPowerSpeedMax Air FlowMax   PressureNoiseInsulation ClassMotor PtotectionWeightPackage DimensionInchMaterial
VHZAWrpmm3/hPad(B)kgcm
CH-C100220500.368250027535065FIP 443.8530.5×27.5×23.54"Powder Coating
CH-C125220500.3752500380390663.8530.5×27.5×23.55"
CH-C150220500.4892500760400725.538×37.5×266"
CH-C160220500.3852500790420725.538×37.5×266 1/2 "
CH-C200220500.51272500880550706.538×37.5×268"
CH-C250220500.716825001020670706.538×37.5×2610"
CH-C315220501.122325001550830638.744×43.5×27.512"
